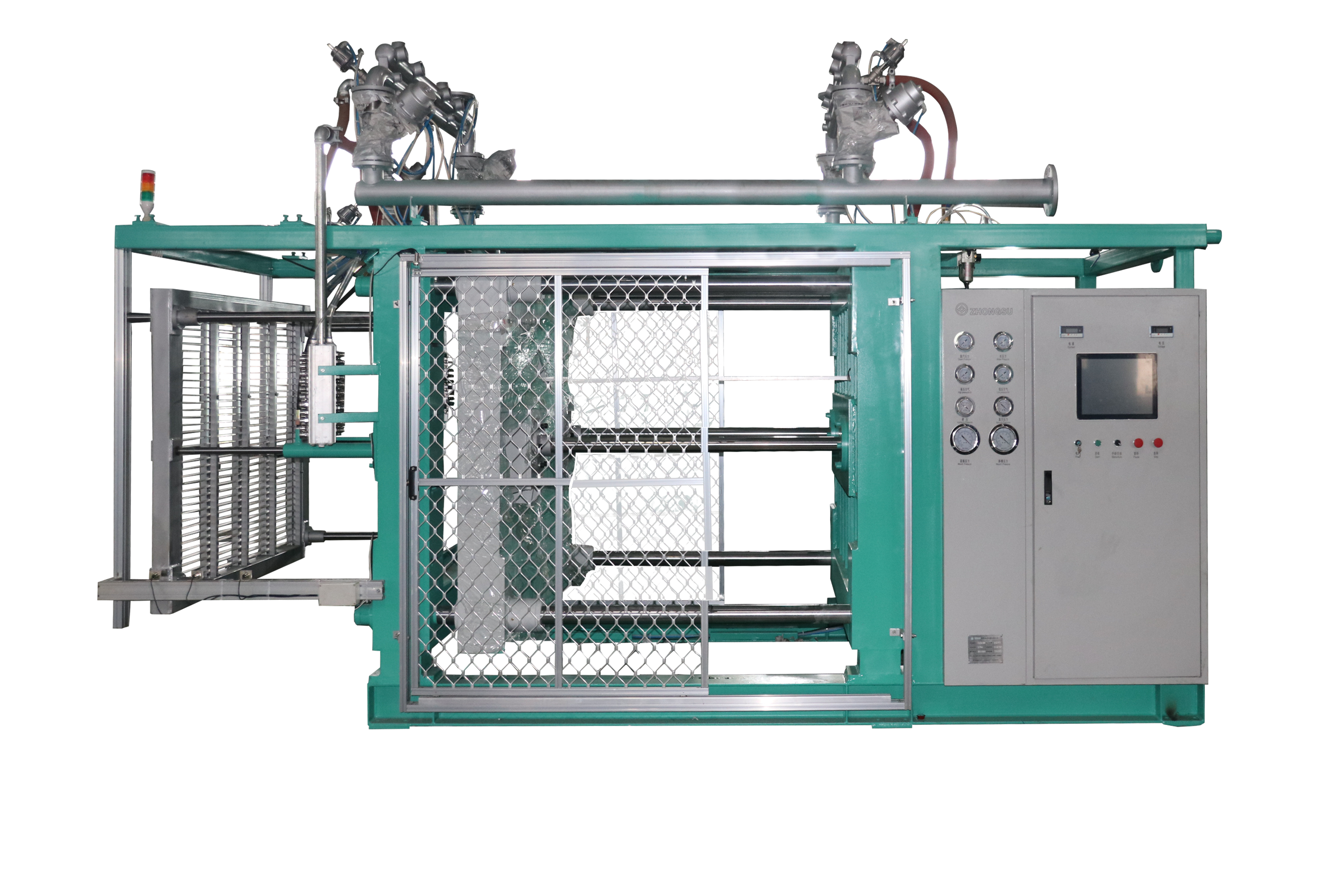

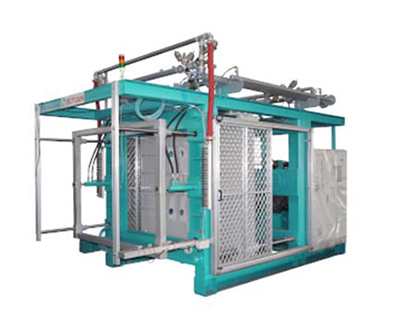

Quick Die Change System EPS Shape Moulding Machine

Quick Die Change System EPS Shape Moulding Machine

Quick Die Change System Styrofoam Shape Molding Machine can change mould fast. The box making machine has open framework design, advanced auto rod guide and fix system, which greatly reduces machine stop period and can truly realizes QDCS. When you reduce the time for mold change, you will produce more products in the same time to sale to make more money.

MACHINE PROPERTIES QUICK CHANGE SYSTEM MACHINE STRUCTURE CONTROL SYSTEM EFFICIENT STEAMING MANUFACTURING SERVICE PRODUCTION PROCESS

MACHINE PROPERTIES

Machine Type		Fast Mould Change Series EPS Shape Moulding Machine
Model			ST1214SQY	ST1417SQY	ST1618SQY
Data		unit	ST1214SQY	ST1417SQY	ST1618SQY
Overall		mm	536333104852	536336105152	536337105352
Mould size		mm	1200*1400	1400*1700	1600*1800
Product high		mm	350	350	350
Move Distance		mm	1200	1200	1200
Rod	Diameter	mm	80	80	100
Rod	Quantity	pcs	4	4	4
Oil	Diameter	mm	125	150	150
	Distance	mm	1200	1200	1200
	Force	bar	29437	42390	42390
Hopper	Capacity	L	145	145	145
Hopper	Quantity	pcs	2	2	2
Steam	Machine Inlet	DN	100	100	100
	Mould Inlet	DN	50*2	50*2	50*2
	Pressure	bar	6	6	6
	Consumption	Kg	4~5	4~5	4~5
Cooling	Machine Inlet	DN	80	80	80
	Mould Inlet	DN	50	50	50
	Pressure	bar	4	4	4
	Consumption	Kg	0~6.28	0~6.28	0~6.28
Vacuum	Connector		100	100	100
Vacuum	Drainage	L/h	100	100	100
Air	Low	DN	65	65	65
	Low	bar	4	4	4
	High	DN	50	50	50
	High	bar	6	6	6
	Consumption	m³	0.3~0.6	0.3~0.6	0.3~0.6
Hydraulic	Motor	Kw	7.5	11	11
Hydraulic	Capacity	L	400	400	400

QUICK CHANGE SYSTEM

Fast mould change, open framework design, advanced auto rod guide and fix system greatly reduce machine stop period, truly realizes QDC (Quick Die Chang System). The mold change time is about 20 to 30min.

MACHINE STRUCTURE

Adopts high quality stainless steel and American DUPONT heavy anti-rust paint to fully guarantee the intensity of vessel and working life.

CONTROL SYSTEM

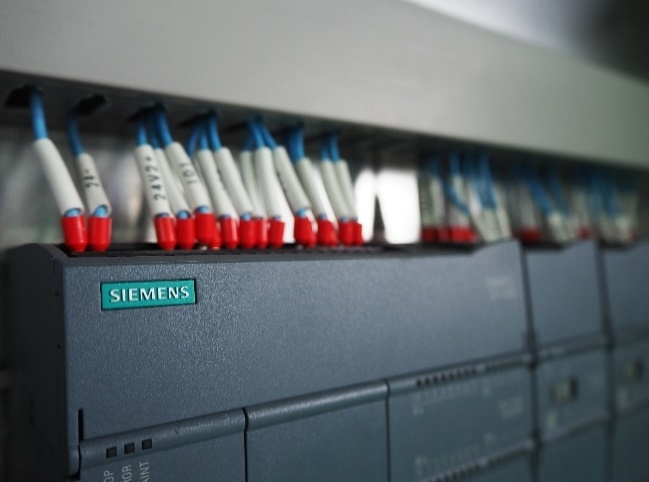

The whole process, including filling, stream, heating, de-mould and convey-ing, is automatic and can be control-ed remotely with the support of PLC(Siemens) and industrial touch screen (Customized 15”) with WIFI support.

EFFICIENT STEAMING

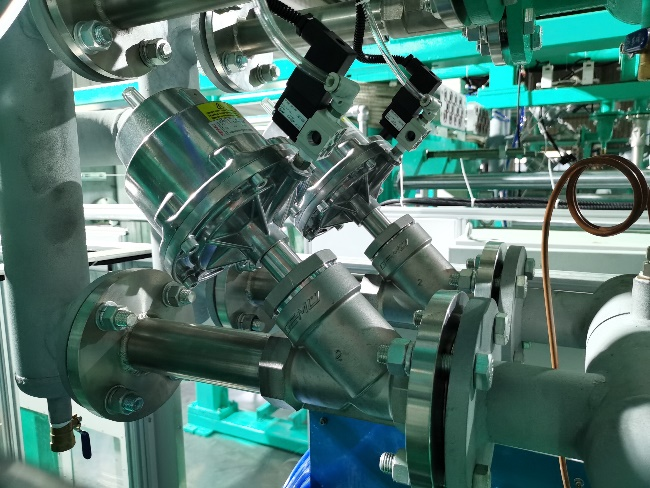

Multiple PID valve pipe system monitoring steaming:1~2 bar big steaming bytwo steaming pipes, 2~2.5 bar by PID digital model locator valve to monitor steaming => fast & accurate steam.

MANUFACTURING

Our factory is located in the Xindeng, Hangzhou. Styrofoam Machine’sAnti-rust Processing We focused on top quality shape mold-ing machine and other foam equipment for over 20 years in China.
